Carbon Steel Sheet

Home » Products » Carbon Steel Coil » Q345 Carbon Steel Sheet

Product Category

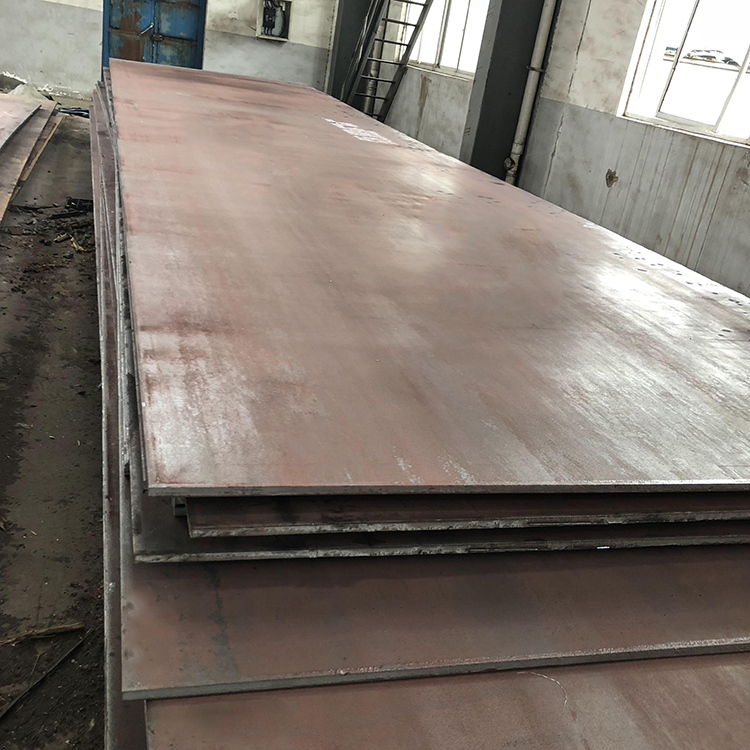

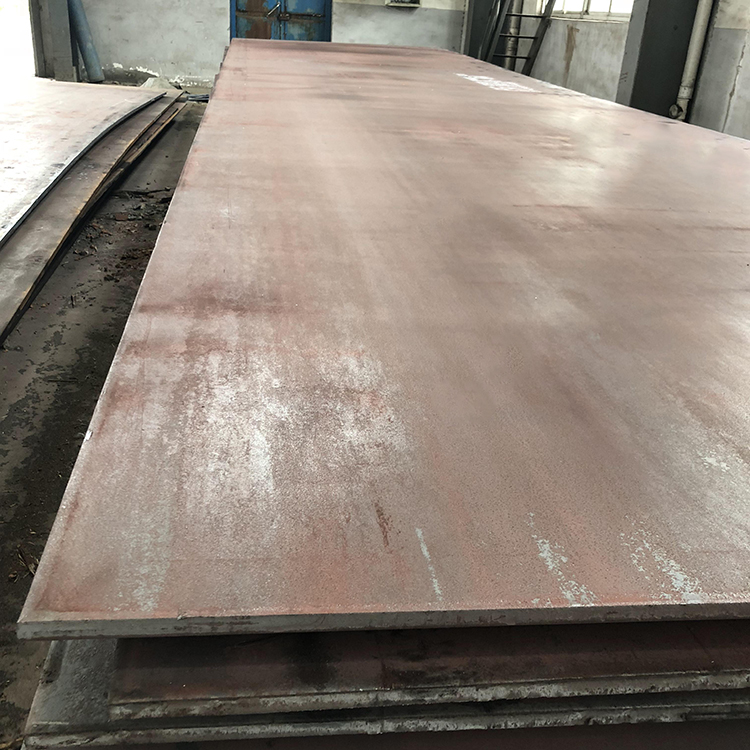

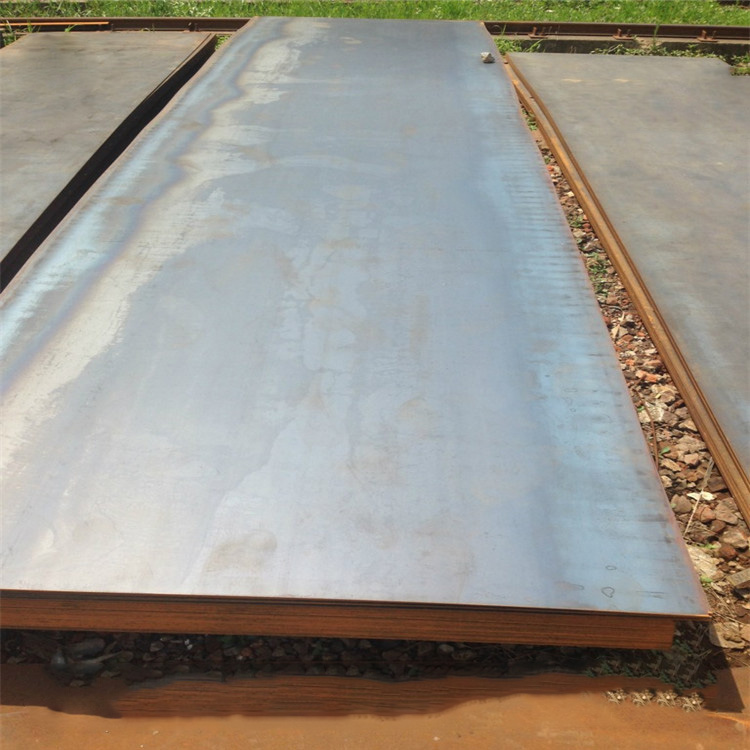

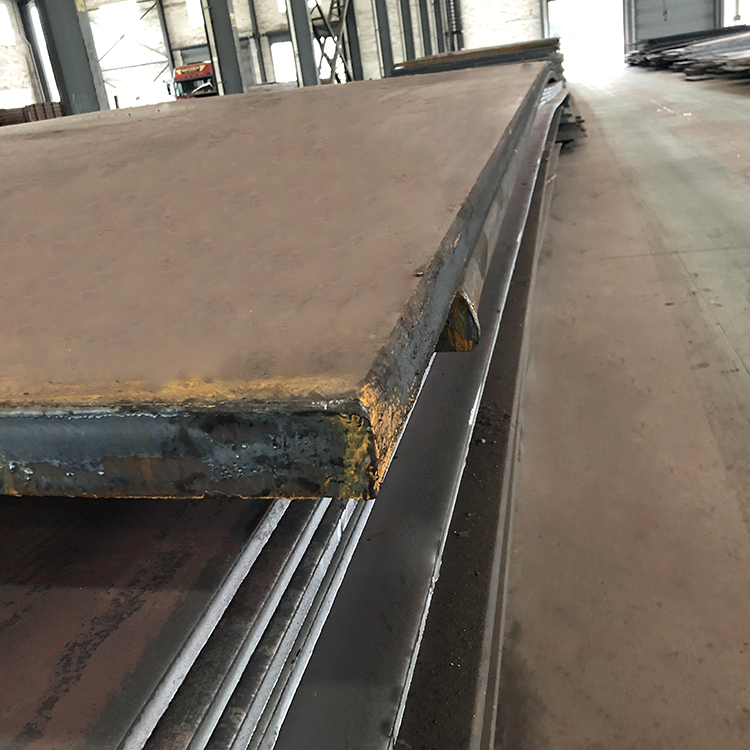

Q345 Carbon Steel Sheet

Product Description

Jiangsu Zhongzhilian Steel Industry Co., Ltd.,

Contact person: sales

Tel：+86-13373608768

Email：sales@zzlsteel.com

What’app: 0086-13373608768

Skype：0086-13373608768

Wechat : 0086-13373608768

Inquire

Product Features

Carbon steel is a common type of steel that is an alloy of iron and carbon. Is a steel with carbon content from about 0.05 up to 2.1 percent by weight. It has a higher carbon content, lower melting point and greater durability compared to stainless steel. Carbon steel is the most widely used engineering and construction material for industrial applications on a large scale, including marine structures, power plants, transportation, chemical processing and petroleum production and refining.

Carbon Steel Sheets and Plates Specifications

Specification : ASTM A516 / ASME SA516

Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc

Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

Thickness : 0.3 mm to 120 mm

Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc

Carbon Steel Sheets and Plates Types:

Carbon Perforated Sheets

Carbon Chequered Plates

Carbon Shim Sheets

Carbon Steel Coils

Carbon Steel Sheets Sizes in Stock:

All Sheets and Plates is manufactured and tested / inspected to the relevant standards including ASTM, ASME and API etc.

Carbon Steel Gauge Width and Length	Weight Lbs. per Sq. Ft.	Estimated Weight per Sheet
7 ga. (.1874") x 48 x 120	7.871	314.8
10 ga. (.135") x 48 x 120	5.670	226.8
11 ga. (.120") x 36 x 120	5.040	151.2
11 ga. (.120") x 48 x 96	5.040	161.3
11 ga. (.120") x 48 x 120	5.040	201.6
11 ga. (.120") x 48 x 144	5.040	241.9
11 ga. (.120") x 60 x 96	5.040	252.0
12 ga. (.105") x 36 x 120	4.410	132.3
12 ga. (.105") x 48 x 120	4.410	176.4
12 ga. (.105") x 60 x 120	4.410	220.5
14 ga. (.075") x 36 x 120	3.150	94.50
14 ga. (.075") x 48 x 120	3.150	126.0
16 ga. (.060") x 36 x 120	2.520	75.60
16 ga. (.060") x 48 x 96	2.520	80.64
16 ga. (.060") x 48 x 120	2.520	100.8
16 ga. (.060") x 60 x 120	2.520	126.0
18 ga. (.048") x 36 x 120	2.016	60.48
18 ga. (.048") x 48 x 120	2.016	80.64
20 ga. (.036") x 36 x 120	1.512	45.36
20 ga. (.036") x 48 x 120	1.512	60.48
22 ga. (.030") x 36 x 120	1.260	37.80
22 ga. (.030") x 48 x 96	1.260	40.32
22 ga. (.030") x 48 x 120	1.260	50.40
24 ga. (.024") x 36 x 120	1.008	30.24
24 ga. (.024") x 48 x 120	1.008	40.32
26 ga. (.018") x 36 x 120	.7560	22.68
26 ga. (.018") x 48 x 120	.7560	30.24
28 ga. (.015") x 36 x 120	.6300	18.90
