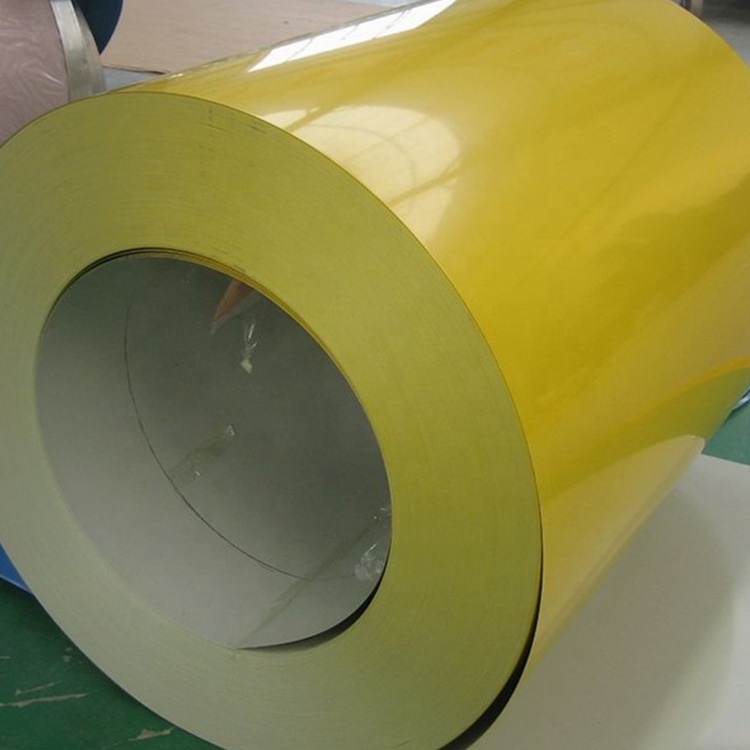

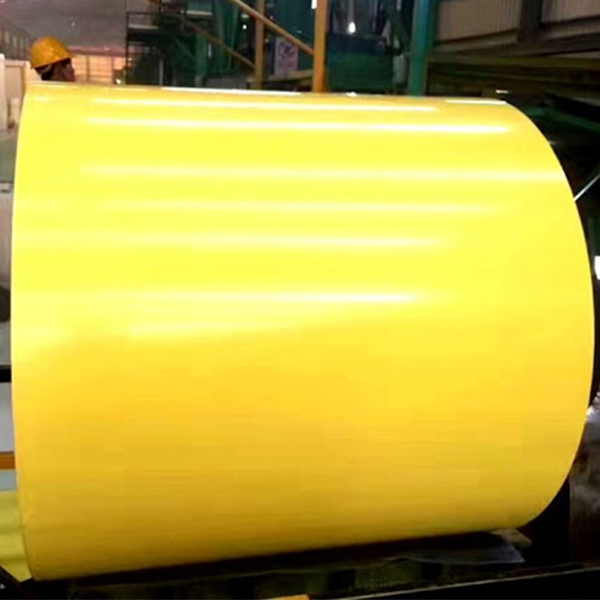

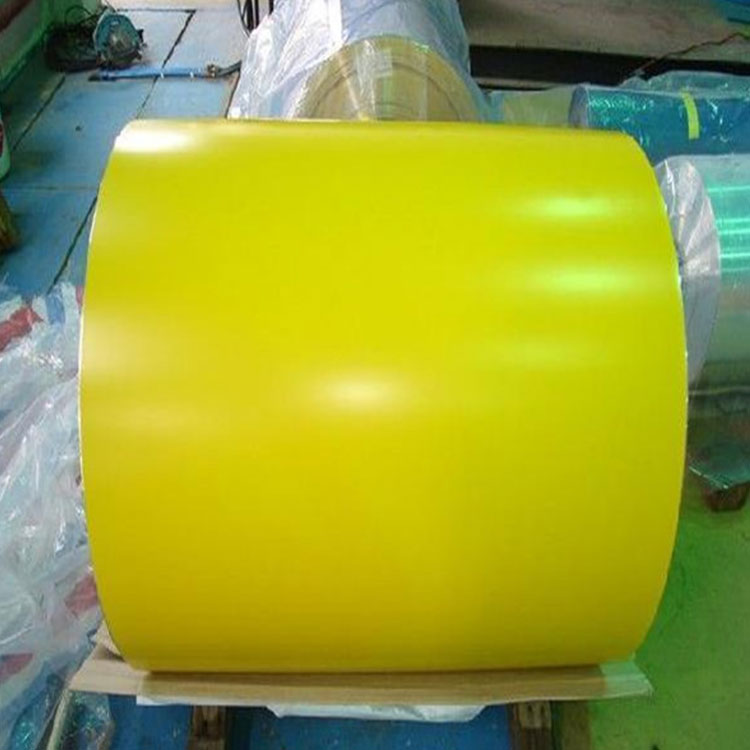

Q235 ppgi ppgl coil
Product Description

Jiangsu Zhongzhilian Steel Industry Co., Ltd.,

Contact person: sales

Tel:+86-13373608768

Email:sales@zzlsteel.com

What’app: 0086-13373608768

Skype:0086-13373608768

Wechat : 0086-13373608768


Product Features

PPGI Steel Coil Supplier


PGL Coil uses DX51D+AZ, and q195 and galvalume steel sheet as the substrate, PE coating is our most commonly produced, it can be used for up to 10 years.

ZZL can also customize the color of PPGL Coil, such as wood grain, matt.

PPGL sheet in coil is a kind of steel Coil with PE, HDP, PVDF, and other coatings. It has good processing and forming, good corrosion resistance, and the original strength characteristics of the steel plate.




PPGI Steel Coil Specifications



Product Name PPGI, Prepainted Galvanized Steel Coil
Technical Standard ASTM DIN GB JIS3312
Grade SGCC SGCD or customer's requirement
Type Commercial Quality/DQ
Thickness 0.13-2.0mm
Width 600-1500mm
Zinc Coating 40-275 g/m2
Color all RAL Colors, or According to Customers Require/Sample
Top Side Primer paint+polyester paint coating
Back side Primer epoxy
Coil Weight 3-8 tons per coil
Package Standard export package or customized
Hardness >=F
T Bend >=3T
Reverse Impact >=9J
Salt Spray Resistance >=500 hours

PPGI Steel Sheet Applications
Color coated steel coil/sheet (PPGI & PPGL) is widely used in:
Building
Roofing
Transport
Home Appliances, such as the side door plate of refrigerators, shell of DVDs, air conditioners and washing machines.
Solar Energy
Furniture


PPGI is pre-painted galvanized steel, also known as pre-coated steel, color coated steel etc.
Using Hot Dip Galvanized Steel Coil as the substrate, PPGI is made by first going through surface pretreatment, then the coating of one or more layers of liquid coating by roll coating, and finally baking and cooling. The coatings used including polyester, silicon modified polyester, high-durability, corrosion-resistance and formability.


ZZL are a PPGI & PPGL manufacturer in China. Our PPGI (Prepainted Galvanized Steel) & PPGL (Prepainted Galvalume Steel) are available in a variety of specifications.

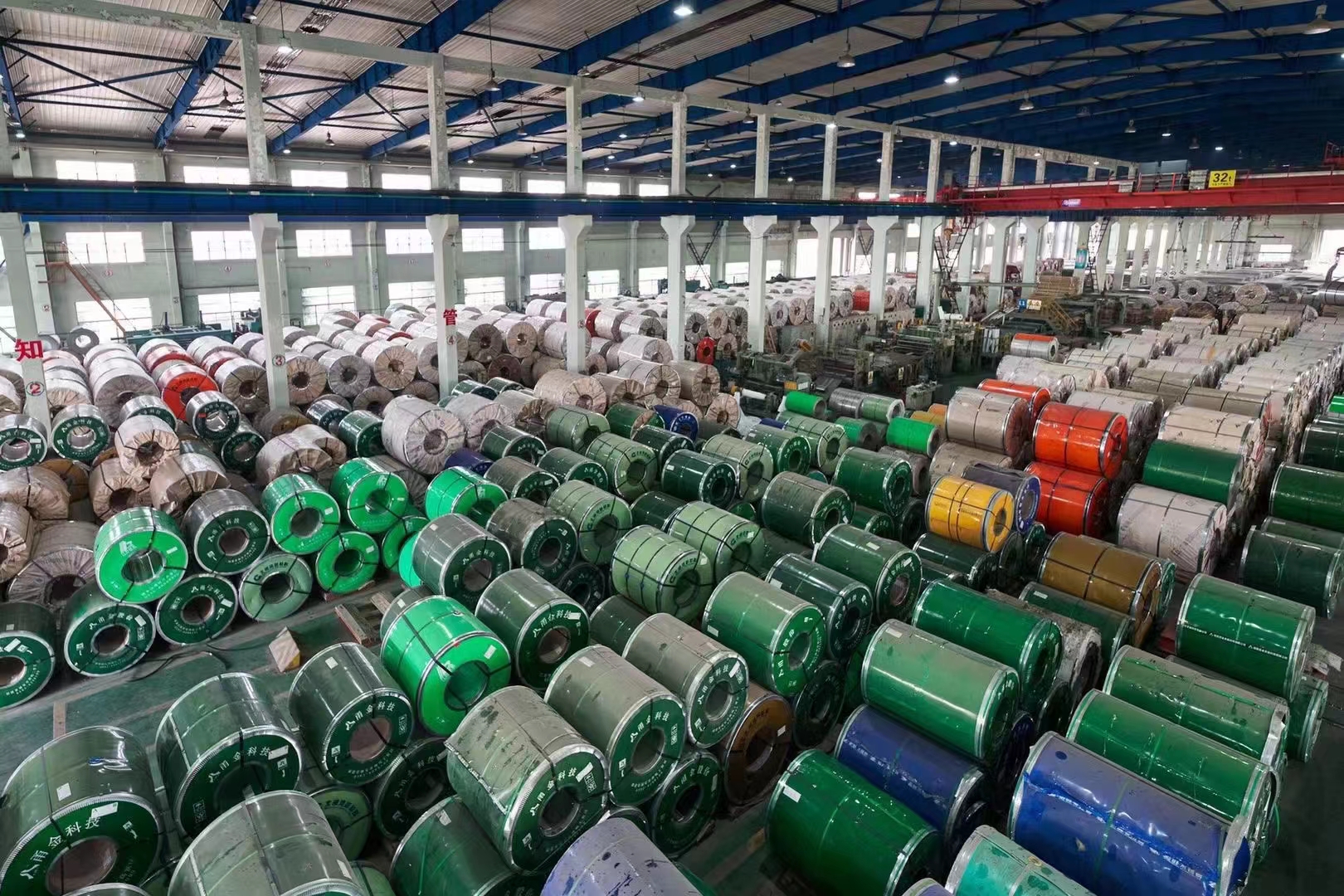

PPGI Production Line
The annual capacity of Color-coated Line is 240,000 tons. We could manufacture top grade steel sheet in building materials plate, automobile plate, electrical appliance plate, solar energy panel, high coating and corrosion resistant plate, MATT plate and plate used for windows and doors.


Name

PPGI PPGL Coil

Standard

GB,JIS,DIN,AISI,ASTM

Grade

SPCC,SPCD,SPCE,ST12-15,DC01-06,Q195A-Q235A,Q195AF-Q235AF,Q295A(B)-Q345A(B)

Thickness

0.13-2.5mm

Width

600mm to 1500mm

Length

According to customer’s requirement or cut into sheet

MOQ

1 ton

Surface

Clean, blasting and painting according to customer requirement

Packing

standard export packing (inside:water proof paper,outside:steel covered with strips and pallets)

Loading port

Tianjin or shanghai

Delivery Detail

About 5-7  days after receive  the deposit.
