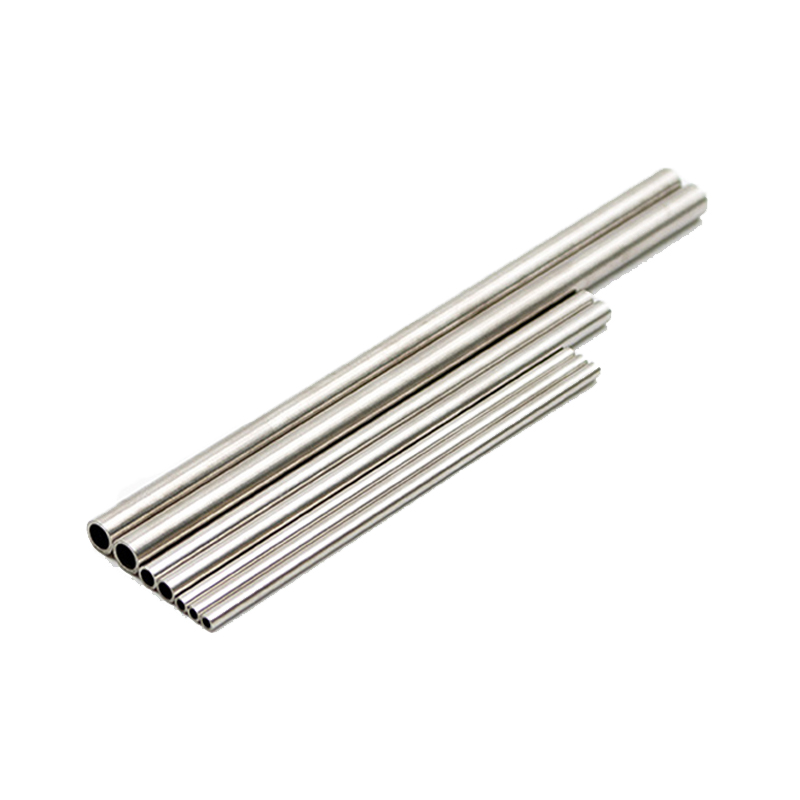

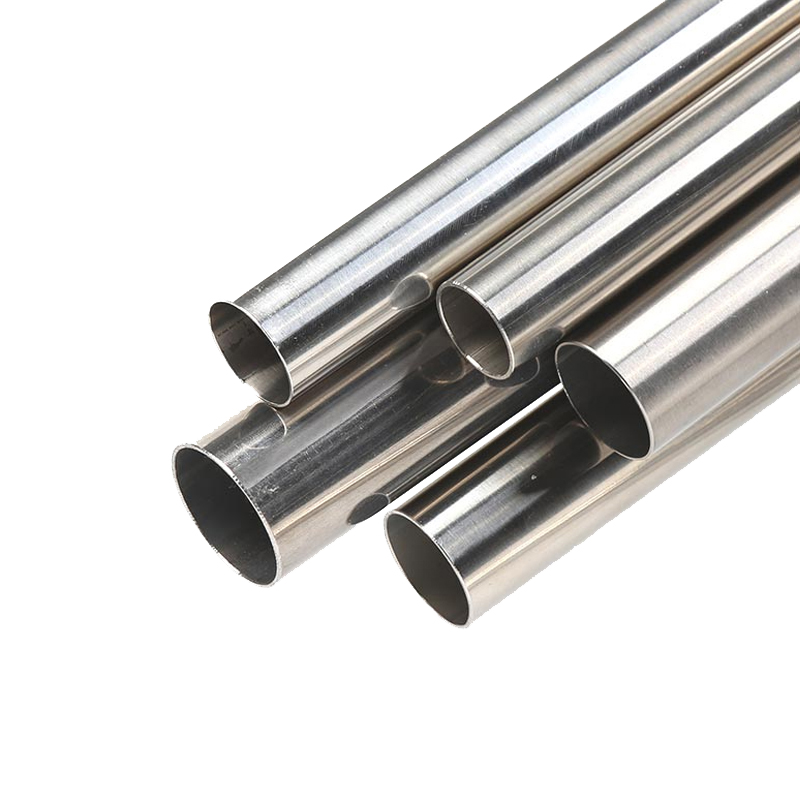

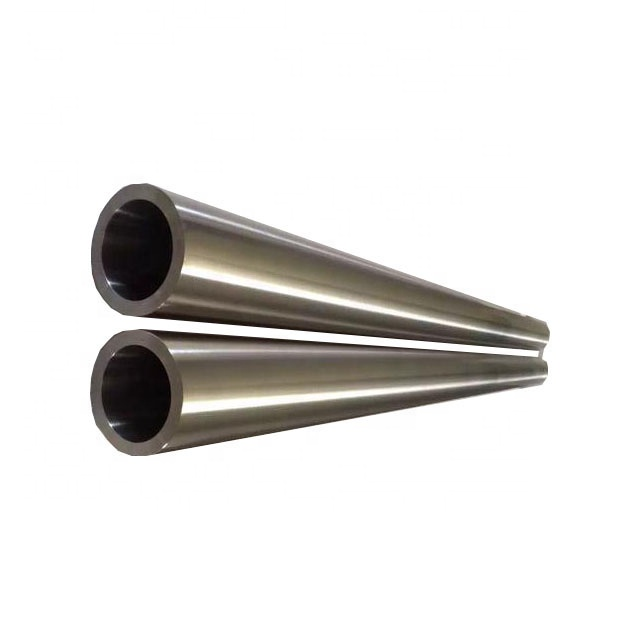

Monel K500 Pipe
Product Description

Jiangsu Zhongzhilian Steel Industry Co., Ltd.,

Contact person: Lidia

Tel:+86-13395130198

Email: lidia@zlyssteel.com

What’app: 0086-13395130198

Skype:0086-13395130198

Wechat : 0086-13395130198



Product Features

Product

Monel Pipe/Sheet/Coil/Bar

Material

Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy

Shape

Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet





Grade

Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L

Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc

Alloy : Alloy 20/28/31

Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g

Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C,

Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602,

Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665

Haynes: Haynes 230/556/188

Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20

Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851,

Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816

Incoloy: Incoloy 800/800H/800HT/825/925/926;

GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044

Monel: Monel 400/K500/R405

Nitronic: Nitronic 40/50/60;

Nimonic: Nimonic 75/80A/90/A263 ;





Specification

Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm;Length 2000-5000mm
Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm

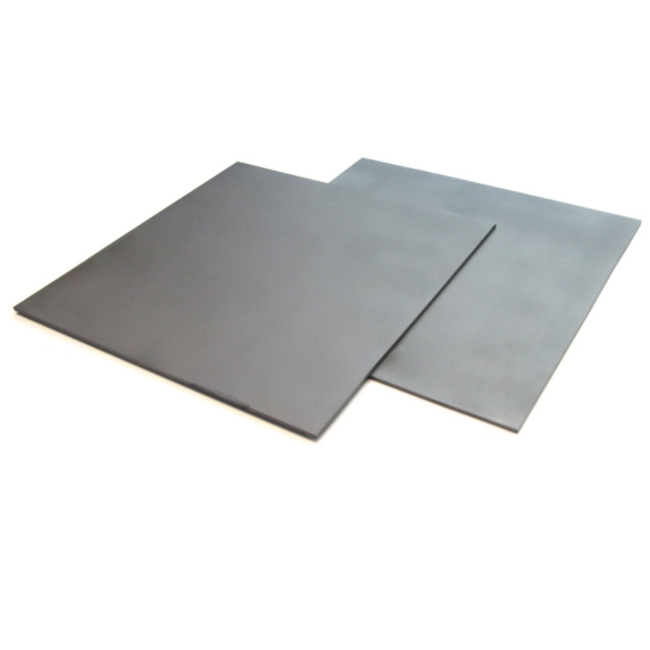

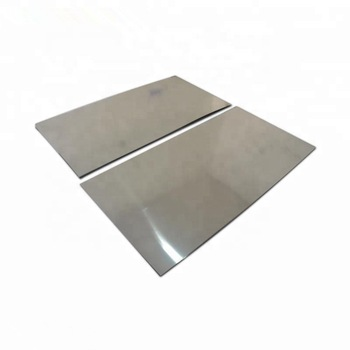

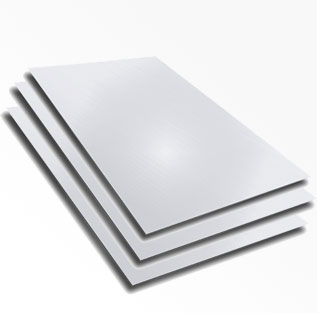

Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm





Product

Characteristics

1.According to the preparation process can be divided into deformation superalloys,
casting superalloys and powder metallurgy superalloys.
2.According to the strengthening mode, there are solid solution strengthening type, precipitation
strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc..

Standard

GB,AISI,ASTM,DIN,EN,SUS,UNS etc

Inspection

ISO,SGS,BV and so on.



Application

High temperature components such as turbine blades, guide vanes, turbine disks,

high pressure compressor disks,machine manufacturing
and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines





Packaging

1. cases packed in wooden cases
2. paper packaging
3. plastic packing
4. foam packaging
Packaging according to customer requirements or products

Delivery

7-25days orAccording to the product

 Payment

L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments for offline orders.


Monel is a common name for a group of nickel alloys that contain nickel the most with copper and other elements.
Usually, Monel contains from 52 to 67% of nickel.
Monel properties and the composition make it stronger than pure nickel material. The formation could be by hot rolling or cold drawing. The cold drawn products precise in their dimensions and the hot rolled ones are much stronger. The alloy is very resistant especially to rapid flow of sea water. This property makes it best suited for sea water and marine applications. It is easy to be welded, machined and cold worked upon this material.
The Monel price per kg differs from grade to grade and from product to product. You can contact us for a price list.

There are different Monel metal grades available in the market. Each has a different composition and therefore specific mechanical properties and purposes. The grades are designated with letters and numbers.
There are Alloy 400, 401, 404, 405, 450, K-500, R-405 and 502 grades available in the market.
The Monel alloy chemical composition differs from grade to grade.
The Alloy 400 has high strength and excellent corrosion resistance. It is used in hydrocarbon processing, marine applications and in heat exchangers.
The Alloy 401 is used especially in electric and electronic applications. It has compatible brazing properties.
The Alloy 404 has low permeability and therefore it is used in electrical and electronic applications as well.
The surface finish of alloy 405 is not very smooth because of the increased dose of sulfur in it, but it is very strong and is used in automatic screw machines.
The Monel alloy applications differ with the grades of the alloy. Some special applications use the R-405 which is particularly resistant to hydrofluoric and hydrochloric acids.


Different types of Monel
There are different types of Metal which includes Alloy 400, Alloy 401, Alloy R-405, Alloy 450, Alloy K-500, Alloy 404 Copper-Nickel Alloy.

Monel Alloy ASTM Standard

Alloy grade UNS designation ASTM standard
Alloy 400 N04400 B 127, B 164 / SB 127, SB 164
Alloy 401 N04401
Alloy 404 N04404 B 164/ SB 164
Alloy K-500 N05500 B 865/ SB 865
Alloy R-405 N04405

Monel Temperature Range
Temperature limit: up to 480 Deg C (896°F)
Melting Point: 1300-1350 Deg C (2372-2462°F)

Monel Alloy Applications & Uses
Power generation
Sea-water applications
Commercial Gas Turbines
Food Processing
Chemical Processing
Cryogenic Storage / Pressure vessels Tanks
Nuclear reactors


Monel Chemical Compatibility Chart

Designation Ni% C% Ti% Ai% Co% Cr% V% W% Mo% Cu% Nb/Cb Ta% Fe% Sonstige Autres-Other %
Alloy 400 65.0 0.12 - - - - - - - 32.0 - 1.5 Mn 1.0
Alloy 401 43.0 0.10 - - - - - - - 53.0 - 0.75 Si 0.25; Mn 2.25
Alloy 404 52.0-57.0 0.15 - 0.05 - - - rest/bal - 0.50 Mn 0.10; Si 0.10;S o.024
Alloy 502 63.0-17.0 0.10 0.50 2.5-3.5 - - - - - rest/bal - 2.0 Mn 1.5;Si 0.5; S 0.010
Alloy K 500 64.0 0.13 0.6 2.8 - - - - - 30.0 - 1.0 Mn 0.8
Alloy R 405 66.0 0.15 - - - - - - - 31.0 - 1.2 Mn 1.0; S 0.04
Properties of Monel Alloy
Characteristics

-Stronger than steel
-Highly resistant to corrosion.
-Malleable
-Low coefficient of thermal expansion
-Highly resistant to alkalis
-Suitable for welded, brazed and soldere


Mechanical Analysis
Tensile strength, Ultimate 550 Mpa
Tensile strength, Yield 240 Mpa
Elongation at Break 48%
ELECTRICAL PROPERTIES
Electrical Resistance 5.47e-005 ohm-cm
Curie Temperature (the temperature above which a ferromagnetic substance loses its ferromagnetism) 35°C
THERMAL PROPERTIES
CTE, linear 20°C 13.9 µm/m- Deg C
Heat Capacity 0.427 J/g-Deg C
Thermal Conductivity 21.8 W/m-K
Melting Point 1300 - 1350 Deg C
Solidus 1300 Deg C
Liquidus 1350 Deg C
